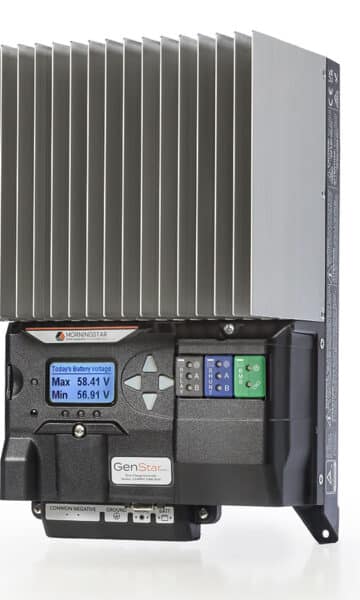

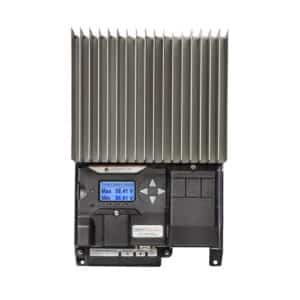

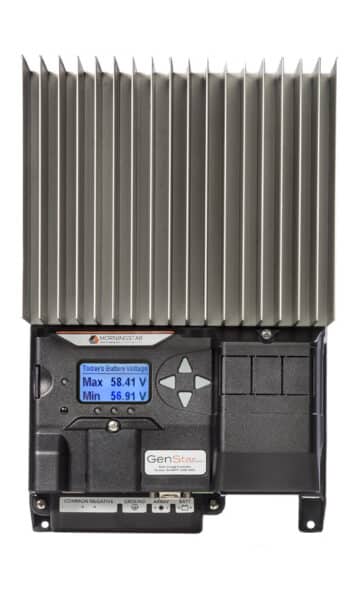

GenStar MPPT
The revolutionary GenStar MPPT represents Morningstar’s best engineering efforts brought together in a single design, with full, advanced communications and control features built-in–plus the ability to add more technology to any system through our innovative ReadyRail expansion technology.
The GenStar MPPT is available in 60, 80, and 100A charge rating ratings with a maximum Voc limit of 200V, and support for 12, 24, 36, and 48V lead acid/lithium/other batteries. Watch the video to learn more about this product and how to access its Android and iOS mobile apps, as well as the LiveView 2.0 Dashboard to monitor and configure your system.
Models: GS-MPPT-60M-200V, GS-MPPT-80M-200V, GS-MPPT-100M-200V
Models: GS-MPPT-60M-200V, GS-MPPT-80M-200V, GS-MPPT-100M-200V,
Specifications and Certifications by Model
| Model |
GS-MPPT-60 |
GS-MPPT-80 |
GS-MPPT-100 |
|
|---|---|---|---|---|
| *The PV array power rating may exceed the controller’s Max Nominal Output Power specification by approximately 150%. The controller will limit battery current and prevent damage. Array oversizing should be considered on a case by case basis. | ||||
| Charge Rating | 60 amps | 80 amps | 100 amps | |
| Max. PV Open Circuit Voltage (Voc) | 200 volts | 200 volts | 200 volts | |
| Nominal Battery Voltage | 12, 24, or 48V | 12, 24, or 48V | 12, 24, or 48V | |
| Max. Output / Max PV Input* – 12 volt battery | 800W / 1200W | 1075W / 1600W | 1350W / 2000W | |
| Max. Output / Max PV Input* – 24 volt battery | 1600W / 2400W | 2150W / 3200W | 2700W / 4000W | |
| Max. Output / Max PV Input* – 48 volt battery | 3200W / 4800W | 4300W / 6400W | 5400W / 8000W | |
| Peak efficiency | 99% | 99% | 99% | |
| Battery Operating Voltage Range | 8-72Vdc | 8-72Vdc | 8-72Vdc | |
| Load Current | 30A | 30A | 30A | |
| Max. Self-consumption | <3 Watts | <3 Watts | <3 Watts | |
| Operating Temperature Range | -30C to +45C (full power); derate to 60C | -30C to +45C (full power); derate to 60C | -30C to +45C (full power); derate to 60C | |
| Warranty | 5 Years | 5 Years | 5 Years | |
| Built-in meter | Yes | Yes | Yes | |
| CE and RoHS compliant | Yes | Yes | Yes | |
| TAA compliant | Yes | Yes | Yes | |
| IEC 62109-1 | Yes | Yes | Yes | |
| ETL Listed [UL-1741 and Canadian CSA C22.2 No.107.1.01] | Yes | Yes | Yes | |
| FCC Class B Part 15 Compliant | Yes | Yes | Yes | |
| CEC Australia listing | Future | Future | Future | |
| IEC 60950, 62093, 62509 | Future | Future | Future | |
| Manufactured in a Certified ISO 9001 Facility | Yes | Yes | Yes | |
- Full network integration without requiring adapters or extra equipment–Modbus and ModbusIP via 485, Ethernet, WiFi, MS-CAN connects MS Devices (proprietary), GS network information bridging.
- WiFi, and Bluetooth connectivity with a mobile device and app for easy connection, dashboard views, downloading data and firmware updates. It also includes our LiveView 2.0 web app interface onboard
- Powerful Load Control – built-in 30A load capability, unique for controllers in this power class
- Oversized PV Array Input capability – array input power rating @ 150% meets today’s system design needs for PV oversizing
- Extensive electronic protections include cold-weather lithium “fold back” circuitry to guard against cold-weather charging damage. Also, short-circuit, over-current and reverse polarity to ensure the controller will not be damaged by wiring mistakes or overloads
- Fanless design for improved efficiency and exceptional long-term reliability
- ReadyBlock expansion system through exclusive ReadyRail design achieves true controller technology integration. All information is instantly available since it’s actually part of the hardware and software of the charge controller itself, instead of outside the system as with a typical stand-alone accessory device. Available ReadyBlock modules include:
- ReadyShunt – battery metering/monitoring, key metrics including state of charge (SOC), energy in/out (Amp hours), current measurement for system sources and loads, and more

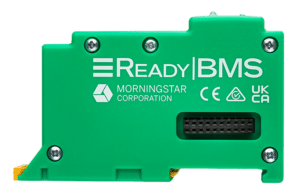

- ReadyBMS – full closed-loop communications and control with lithium batteries

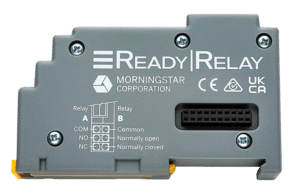

- ReadyRelay – signaling (dry contact), advanced load control

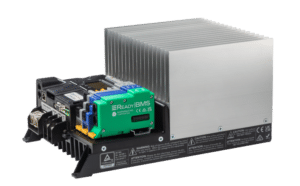

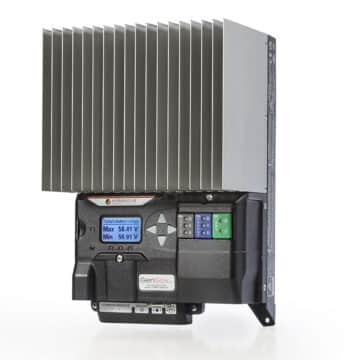

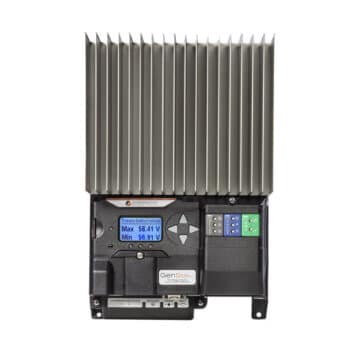

GenStar MPPT shown with
optional ReadyRelay and
ReadyShunt being snapped
onto its ReadyRail which supports
up to three ReadyBlocks.
Introducing Morningstar's New GenStar MPPT | The first fully integrated Solar DC Charging Solution
Eight minute video showcasing 60, 80, and 100 amp versions of the GenStar MPPT and its ReadyBlock accessories to seamlessly integrate relay, shunt, and battery management capabilities in a wide variety of DC power applications.
LiveView Overview |
Brief video showing the three steps to connect your GenStar MPPT to a network to access Morningstar’s LiveView browser interface which allows customers to view off-grid system metrics and program settings.
LiveView External Source Control (The Basics) |
This video should be viewed after Morningstar’s LiveView Overview video. It explains how to use the External Source Control tab in the LiveView interface to remotely control external starts and stops of external power sources such as a generator or fuel cell.
LiveView External Source Control (Video 2: Customized Programming) |
Learn more details about how to configure the External Source Control feature to get the exact functionality required for your off-grid system.
LiveView External Source Control (Video 3: Advanced Features) |
Watch this video to learn about combinational logic and multi-schedule programming in Morningstar’s LiveView interface.
Unboxing Morningstar's GenStar MPPT |
Glen Morris of Smart Energy Lab created this video to let people see him unbox the GenStar MPPT DC System Controller and get better acquainted with the characteristics of this product and the supporting documents and hardware that are included.

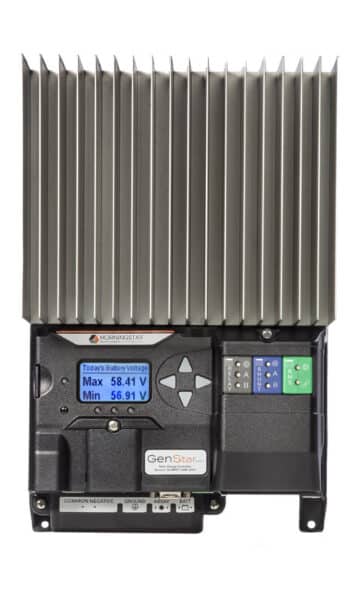

With GenStar’s integrated ReadyRail technology, adding new features is literally a snap
Morningstar’s exclusive ReadyBlock expansion system using ReadyRail engineering achieves true controller technology integration. All information is instantly available since it’s actually part of the hardware and software of the charge controller itself, instead of outside the system as with typical stand-alone accessory devices. Available ReadyBlock modules include:

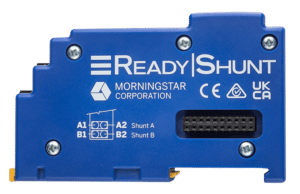

ReadyShunt
Battery metering/monitoring, key metrics including lead-acid state of charge (SOC), energy in/out (Amp hours), current measurement for system sources and loads, and more

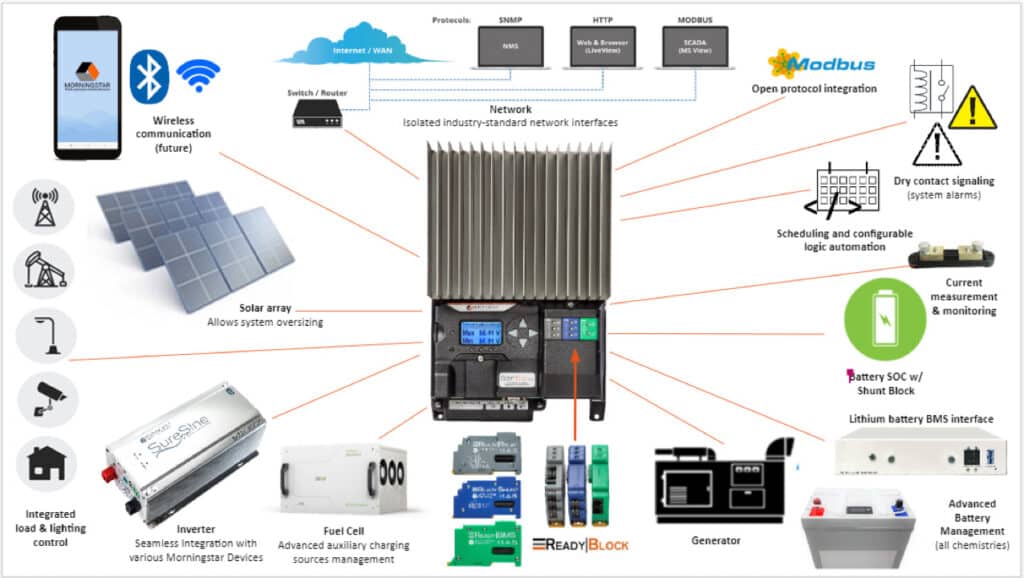

System Diagram
