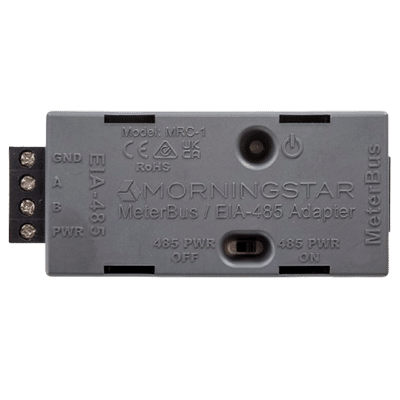

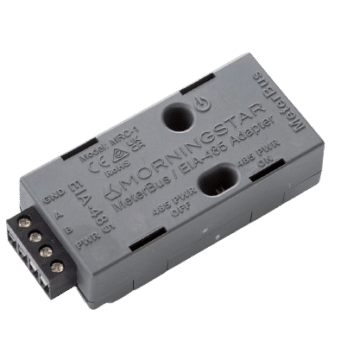

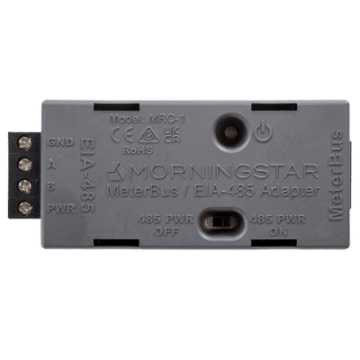

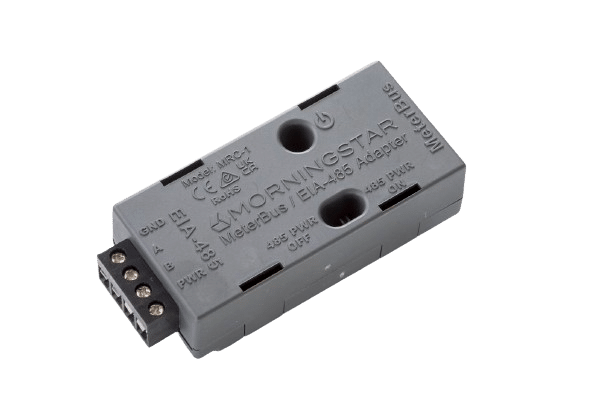

Meterbus to EIA-485 Adapter (MRC-1)
The Meterbus-485 Adapter (Model: MRC-1), with RJ-11 cable included, converts the Morningstar MeterBus RJ-11 electrical interface to a standard EIA-485 interface. This allows Morningstar controllers or inverters with a MeterbusTM port, but without an EIA-485 communications port, to network with Morningstar EIA-485 devices like the GenStar and TriStar MPPT controllers. The MRC-1 can also be used for EIA-485 communications with any 3rd party hardware that supports Modbus communication.
Specifications and Certifications by Model
| Model | MRC-1 |
|---|---|
| Minimum Operating Voltage | >11V |
| Self Consumption | ~ 8mA |
| Operating Temperature Range | -40 C to +60C |
| Warranty | 5 Years |
| CE and RoHS | Yes |
| Manufactured in a Certified ISO 9001 Facility | Yes |
Key Features and Benefits
- The MRC-1 is protected against reverse polarity at its EIA-485 power terminals
- The MRC-1 supports a four wire EIA-485 bus: GND, Data A, Data B, Power. A networked GenStar
MPPT will use only three (3) wires: GND, Data A, Data B. Data A and B are differentially driven lines
that carry the network data - The MRC-1is capable of supplying isolated power to an EIA-485 network, eliminating the need for
an external bus power source in many cases - Five year limited warranty
